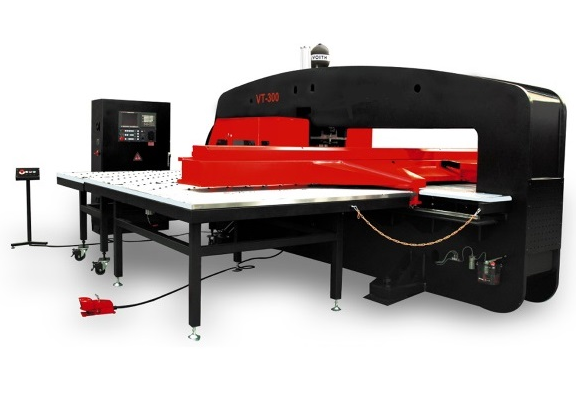

VT-300




Introduction:

Punch force of 30T, the Max. Punch hit is 600 hpm, O-type frame, FANUC 0i-PD CNC system, 7.2” monochrome display, Chinese and English menu, controlling X, Y of feeding axes, T of tooling selection axis  and  C of tooling rotation axis; Hydraulic H+L system control, 32 stations.

Technical Parameter:

No.

Specification

Unit

Machine Model

VT-300

1

Max. Punch Force

KN

300

2

Main Driving Type

/

Hydraulic driving type

3

CNC System

/

FANUC Oi-PD

4

Max. Sheet Processing Size (with one reposition)

mm

1250x2500

1250×4000

1500x5000

5

No. of Clamp

no.

3

6

Max. Processing Sheet Thickness

mm

6.35

7

Max. Punch Diameter per Time

mm

Φ88.9

8

Main Cylinder Stroke

mm

40

9

Max. Punch Hit at 1mm Pace

hpm

600

10

Max. Punch Hit at 25mm Pace

hpm

350

11

Auto programming software

unit

CNCKAD

12

No. of Repositioning Cylinder

set

2

13

No. of Station

no.

32

14

No. of Auto Index

no.

2 (can be expanded)

15

No. of Controlling Axis

no.

4

17

Machine Structure

Closed O type

18

Beam Structure

Single guideway

19

Worktable Type

/

Ball & brush mixed (full brush table is option)

Double guideway

20

Max. Feeding Speed

X Axis

m/min

20

21

Max. Feeding Speed

Turret Speed

Y Axis

m/min

30

60

XY Combined

60

rpm

85

22

Tooling Rotation Speed

rpm

60

23

Accuracy

mm

±0.1

24

Max. Load Capacity

Kg

250

250

350

25

Main Motor Power

KW

11

26

Air Pressure

MPa

0.55

27

Gas Consumption

L/ min

250

28

CNC Memory Capacity

/

512KB

29

Outline Dimension

mm

5020x2500x2340.50

5020x4000x2340.5

5520x5000x2340.5
