Introduction:

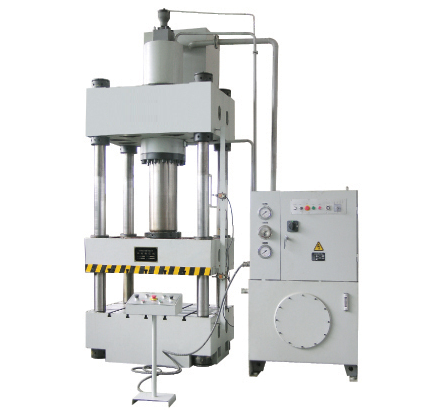

Computer optimized design, 3-beam, 4-column structure, simple but with high performance price ratio.
Cartridge valve integral unit equipped for hydraulic control system, reliable, durable and less hydraulic shock, with shorter connection pipeline and fewer releases points.
Independent electrical control, reliable, audio-visual and convenient for maintenance.
Centralized button control system, with adjustment, hand and semi-auto operation modes at operator's choice.
Fixed stroke forming process or fixed pressure forming process selected through control panel, with pressure hold and time delay functions.
The operating force, no-load traveling and, low-speed movement and travel range can be adjusted subject to technological requirements.
Technical Parameter:
|
|
YL32-63
|
YL32-100
|
YL32-160
|
YL32-200
|
YL32-250
|
YL32-250A
|
YL32-315
|
|
Capacity
|
kN
|
630
|
1000
|
1600
|
2000
|
2500
|
2500
|
3150
|
|
Ejecting Force
|
kN
|
190
|
190
|
190
|
280
|
280
|
280
|
630
|
|
Return Force
|
kN
|
120
|
165
|
210
|
240
|
400
|
400
|
600
|
|
Slide Stroke
|
mm
|
500
|
500
|
560
|
710
|
710
|
710
|
800
|
|
Ejecting Force
|
mm
|
200
|
200
|
200
|
200
|
200
|
200
|
300
|
|
Max. Shut Height
|
mm
|
800
|
800
|
900
|
1120
|
1120
|
1120
|
1250
|
|
Slide Speed
|
Idle Stroke
|
mm/s
|
100
|
120
|
100
|
120
|
130
|
160
|
100
|
|
Pressing
|
mm/s
|
8-16
|
7-15
|
4-10
|
5-12
|
4-10
|
4-10
|
5-12
|
|
Return
|
mm/s
|
85
|
90
|
70
|
95
|
60
|
60
|
60
|
|
Ejecting Speed
|
Eject
|
mm/s
|
55
|
75
|
75
|
80
|
80
|
80
|
55
|
|
Return
|
mm/s
|
105
|
140
|
140
|
145
|
145
|
145
|
145
|
|
Bolster
|
LR
|
mm
|
580
|
690
|
800
|
1000
|
1120
|
1800
|
1260
|
|
FB
|
mm
|
500
|
630
|
800
|
940
|
1000
|
1200
|
1160
|
|
Outline Size
|
LR
|
mm
|
2500
|
2500
|
2550
|
2650
|
2800
|
3600
|
3500
|
|
FB
|
mm
|
1430
|
1430
|
1430
|
1350
|
1400
|
1400
|
1500
|
|
Above Floor
|
mm
|
3220
|
3250
|
3210
|
3800
|
3950
|
4290
|
4600
|
|
Main Motor Power
|
kW
|
5.5
|
7.5
|
11
|
15
|
15
|
15
|
22
|
|
Weight
|
kg
|
2800
|
3700
|
6500
|
9000
|
10300
|
16000
|
14000
|
|
|
YL32-315A
|
YL32-400
|
YL32-500
|
YL32-500A
|
YL32-500B
|
YL32-630
|
YL32-630A
|
|
Capacity
|
kN
|
3150
|
4000
|
5000
|
5000
|
2500×2
|
6300
|
6300
|
|
Ejecting Force
|
kN
|
630
|
630
|
1000
|
1000
|
1000
|
1000
|
1000
|
|
Return Force
|
kN
|
600
|
500
|
900
|
900
|
400×2
|
850
|
850
|
|
Slide Stroke
|
mm
|
800
|
800
|
900
|
900
|
900
|
900
|
900
|
|
Ejecting Force
|
mm
|
300
|
300
|
350
|
350
|
350
|
350
|
350
|
|
Max. Shut Height
|
mm
|
1250
|
1250
|
1500
|
1500
|
1500
|
1500
|
1500
|
|
Slide Speed
|
Idle Stroke
|
mm/s
|
90
|
100
|
100
|
100
|
150
|
100
|
130
|
|
Pressing
|
mm/s
|
5-12
|
4-10
|
7-15
|
7-15
|
7-15
|
5-12
|
5-12
|
|
Return
|
mm/s
|
60
|
70
|
80
|
80
|
90
|
85
|
85
|
|
Ejecting Speed
|
Eject
|
mm/s
|
55
|
55
|
75
|
75
|
75
|
75
|
75
|
|
Return
|
mm/s
|
145
|
145
|
170
|
170
|
170
|
170
|
170
|
|
Bolster
|
LR
|
mm
|
900
|
1250
|
1400
|
2200
|
2200
|
1600
|
2200
|
|
FB
|
mm
|
900
|
1250
|
1400
|
1600
|
1600
|
1600
|
1600
|
|
Outline Size
|
LR
|
mm
|
3150
|
3500
|
3900
|
4800
|
4800
|
4510
|
4900
|
|
FB
|
mm
|
1500
|
1600
|
2150
|
2250
|
2250
|
2250
|
2250
|
|
Above Floor
|
mm
|
4500
|
4850
|
5200
|
5700
|
5600
|
5400
|
5700
|
|
Main Motor Power
|
kW
|
22
|
22
|
2×22
|
2×22
|
2×22
|
2×22
|
2×22
|
|
Weight
|
kg
|
11000
|
16500
|
25500
|
35000
|
34000
|
33000
|
42000
|
|
