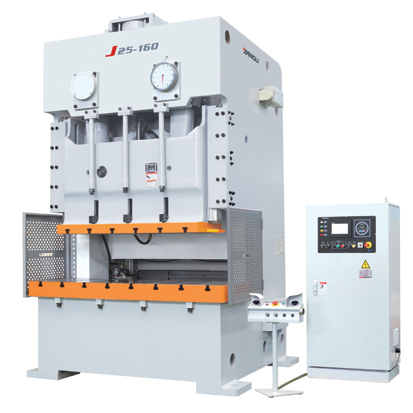

Introduction:
Welded body with steel plate and high intensity.
Suitable for multiple dies automatic line and multi level dies continuous punching.
Double crankshaft pitmen totally eliminating side forces by reverse rotation.
Combined wet multi discs friction clutch and brake.
Cluster gear adopts the flooding oil lubrication.
Six-face rectangle lengthen guide.
Equipped with hydraulic overload protecting device.
Adopts electric shut height adjustment with digital display.
Equipped with lifting balance cylinder.
Duplex valves imported. Electric compelling grease lubrication system.
Balancing cylinder adopts manual lubrication system.
One set of blowing device.
Controlled by PLC with international brand.
Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand.
Equipped with optional air cushion device , photoelectric protector, which can used to work with various automatic equipment.
Ⅰtype specifications is for standard product, Ⅱtype specifications is for customized product.
JH25 series adopts combined dry friction clutch and brake, fixed stroke , the other specifications are the same as J25 series.
Technical Parameter:
|
|
J25-80
|
J25-110
|
J25-160
|
J25-200
|
J25-250
|
|
JH25-80
|
JH25-110
|
JH25-160
|
JH25-200
|
JH25-250
|
|
Type
|
|
Ⅰ
|
Ⅱ
|
Ⅰ
|
Ⅱ
|
Ⅰ
|
Ⅱ
|
Ⅰ
|
Ⅱ
|
Ⅰ
|
Ⅱ
|
|
Capacity
|
KN
|
800
|
1100
|
1600
|
|
2000
|
2500
|
|
Nominal Force
|
mm
|
5
|
3
|
5
|
3
|
6
|
3
|
7
|
3
|
7
|
3.5
|
|
Slide Stroke
|
mm
|
160
|
90
|
180
|
110
|
200
|
130
|
250
|
150
|
280
|
170
|
|
SPM
|
Fixed
|
min-1
|
55
|
70
|
50
|
60
|
45
|
55
|
35
|
45
|
30
|
40
|
|
Variable
|
40-75
|
55-90
|
35-65
|
50-80
|
35-50
|
40-65
|
25-45
|
35-55
|
20-35
|
30-45
|
|
Max. Die Height
|
mm
|
350
|
400
|
450
|
500
|
550
|
|
Die Height Adjustment
|
mm
|
80
|
90
|
100
|
110
|
120
|
|
Between Slide Center & Frame
|
mm
|
310
|
350
|
390
|
430
|
470
|
|
Bolster (FB×LR)
|
mm
|
600
|
680
|
760
|
840
|
920
|
|
1600
|
1880
|
2040
|
2420
|
2700
|
|
Bolster Thickness
|
mm
|
110
|
145
|
130
|
165
|
150
|
185
|
170
|
220
|
180
|
235
|
|
Slide Area (FB×LR)
|
mm
|
460×1200
|
520×1360
|
580×1500
|
650×1850
|
700×2100
|
|
Shank Hole (Dia.×Dpth)
|
mm
|
3-φ60×60
|
3-φ60×70
|
3-φ60×75
|
3-φ60×85
|
3-φ60×95
|
|
Between Columns
|
mm
|
1200
|
1450
|
1600
|
1900
|
2220
|
|
Main Motor
|
Model
|
|
YCT225-4A
|
YCT225-4B
|
YCT250-4A
|
YCT250-4B
|
YCT280-4A
|
|
Power
|
kW
|
11
|
15
|
18.5
|
22
|
30
|
|
Cushion Ejecting Force
|
kN
|
40×2
|
55×2
|
80×2
|
100×2
|
125×2
|
|
Cushion Stroke
|
mm
|
60
|
70
|
80
|
90
|
100
|
|
Bolster Height
|
mm
|
900
|
935
|
900
|
935
|
950
|
985
|
1000
|
1050
|
1100
|
1155
|
|
Outline Size (FB×LR×H)
|
mm
|
2160×1750×3100
|
2250×2040×3260
|
2550×2220×3580
|
2660×2560×3980
|
2880×2860×4320
|
|
Net Weight
|
kg
|
J25:13000
|
J25:16000
|
J25:26000
|
J25:30000
|
J25:42000
|
|
JH25:12500
|
JH25:15500
|
JH25:25500
|
JH25:29500
|
JH25:41500
|
|
