| CNC WC67K SERIES |
| |
 Introduction:

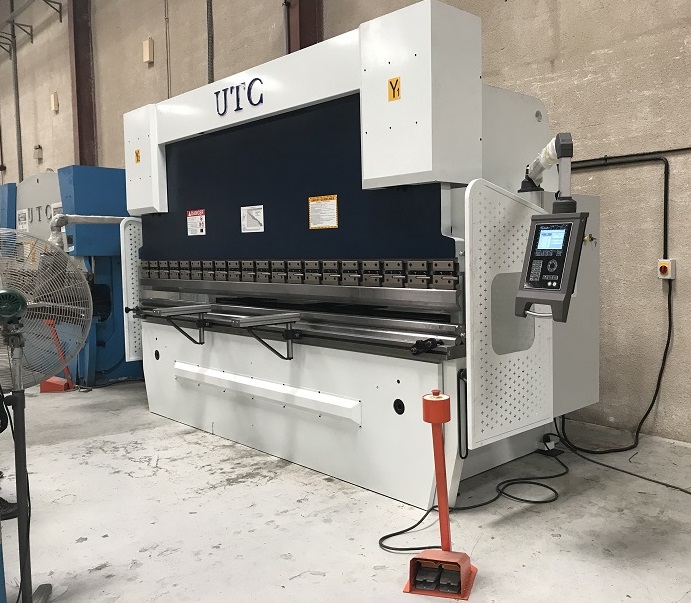

WC67K series CNC hydraulic press brake has two hydraulic cylinders with electro hydraulic servo valve. Deflection can be compensated by hydraulic vaulted back-off system. Backgauge mechanism can control several backgauge axes. Its frame is welded with steel plate and is treated with annealing.Hydraulic system adopts integrated control system and imported ring seals. It has a beautiful and simple contour. CNC system uses DA65W/DA66T/DA52 system with English manu made in delem company of Holland.It can also be equipped with mould fixture according to customer’s requirement.
Technical Parameter:
|
Model
|
Nominal Pressure
|
Length of Worktable
|
Distance between column
|
Ram stroke
|
Throat depth
|
Motor power
|
|
|
KN
|
mm
|
mm
|
mm
|
mm
|
KW
|
|
WC67K-40/2000
|
400
|
2000
|
1590
|
100
|
200
|
5.5
|
|
WC67K-40/2200
|
400
|
2200
|
1590
|
100
|
200
|
5.5
|
|
WC67K-40/2500
|
400
|
2500
|
2090
|
100
|
200
|
5.5
|
|
WC67K-50/2500
|
500
|
2500
|
1900
|
120
|
250
|
5.5
|
|
WC67K-50/3200
|
500
|
3200
|
2600
|
120
|
250
|
5.5
|
|
WC67K-63/2500
|
630
|
2500
|
2050
|
100
|
250
|
5.5
|
|
WC67K-63/3200
|
630
|
3200
|
2600
|
100
|
250
|
5.5
|
|
WC67K-80/3200
|
800
|
3200
|
2600
|
120
|
320
|
7.5
|
|
WC67K-80/4000
|
800
|
4000
|
3200
|
120
|
320
|
7.5
|
|
WC67K-100/2500
|
1000
|
2500
|
1900
|
120
|
320
|
7.5
|
|
WC67K-100/3200
|
1000
|
3200
|
2600
|
120
|
320
|
7.5
|
|
WC67K-100/4000
|
1000
|
4000
|
3200
|
120
|
320
|
7.5
|
|
WC67K-100/5000
|
1000
|
5000
|
4000
|
120
|
320
|
7.5
|
|
WC67K-125/2500
|
1250
|
2500
|
1900
|
120
|
320
|
7.5
|
|
WC67K-125/3200
|
1250
|
3200
|
2600
|
120
|
320
|
7.5
|
|
WC67K-125/4000
|
1250
|
4000
|
3200
|
120
|
320
|
7.5
|
|
WC67K-125/5000
|
1250
|
5000
|
4000
|
120
|
320
|
7.5
|
|
WC67K-160/3200
|
1600
|
3200
|
2600
|
200
|
320
|
11
|
|
WC67K-160/4000
|
1600
|
4000
|
3200
|
200
|
320
|
11
|
|
WC67K-160/5000
|
1600
|
5000
|
4000
|
200
|
320
|
11
|
|
WC67K-160/6000
|
1600
|
6000
|
4800
|
200
|
320
|
11
|
|
WC67K-200/3200
|
2000
|
3200
|
2600
|
200
|
320
|
15
|
|
WC67K-200/4000
|
2000
|
4000
|
3200
|
200
|
320
|
15
|
|
WC67K-200/5000
|
2000
|
5000
|
4000
|
200
|
320
|
15
|
|
WC67K-200/6000
|
2000
|
6000
|
4800
|
200
|
320
|
15
|
|
WC67K-250/3200
|
2500
|
3200
|
2600
|
250
|
400
|
18.5
|
|
WC67K-250/4000
|
2500
|
4000
|
3200
|
250
|
400
|
18.5
|
|
WC67K-250/5000
|
2500
|
5000
|
4000
|
250
|
400
|
18.5
|
|
WC67K-250/6000
|
2500
|
6000
|
4800
|
250
|
400
|
18.5
|
|
WC67K-300/3200
|
3000
|
3200
|
2600
|
250
|
400
|
22
|
|
WC67K-300/4000
|
3000
|
4000
|
3200
|
250
|
400
|
22
|
|
WC67K-300/5000
|
3000
|
5000
|
4000
|
250
|
400
|
22
|
|
WC67K-300/6000
|
3000
|
6000
|
4800
|
250
|
400
|
22
|
|
WC67K-400/4000
|
4000
|
4000
|
3200
|
320
|
400
|
30
|
|
WC67K-400/5000
|
4000
|
5000
|
4000
|
320
|
400
|
30
|
|
WC67K-400/6000
|
4000
|
6000
|
4800
|
320
|
400
|
30
|
|
WC67K-500/6000
|
5000
|
6000
|
4800
|
320
|
400
|
37
|
|
WC67K-600/7000
|
6000
|
7000
|
5600
|
320
|
400
|
37
|
|
WC67K-700/7000
|
7000
|
7000
|
5600
|
320
|
400
|
45
|
|
WC67K-800/6000
|
8000
|
6000
|
4800
|
400
|
500
|
55
|
|
WC67K-1000/6000
|
10000
|
6000
|
4800
|
400
|
600
|
75
|
|
|
