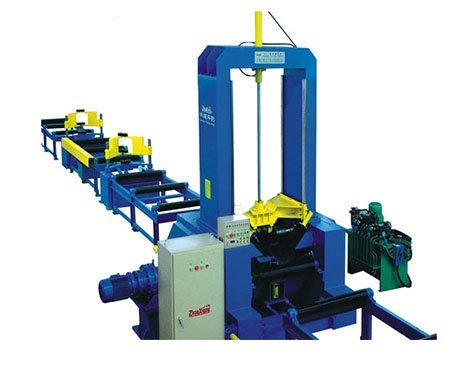

Production Description:
1. The automatic centering of flange and web adopts hydraulic motor and gear, with high centering precision and good retentivity. All of the operation are centralized on the electric control button panel, with easy and convenientoperation and precise positioning.
2. The main transmission part adopts cycloid pinwheel and Taiwan TAIAN brand inverter, the assembly speed can be adjusted between 0.5—6 M/min.
3. The main components of this assembly machine are welded structure parts with large strength and light weight and the key components have been stress relieved, which don’t deform easily.
Technical Parameter:
|
Model |
HZJ1500 |
HZJ1800 |
|
Web height |
200~1500mm |
200~1800 |
|
Web thickness |
6~40mm |
6~40mm |
|
Flange width |
200~800mm |
200~1000mm |
|
Flange thickness |
6~40mm |
6~40mm |
|
Work-piece length |
4000~15000mm or as user’s request |
|
Assembly speed |
0.5~6m/min |
|
Main machine power |
5.5kW |
|
Hydraulic station power |
4kW |
|
Above are our standard model, it can be designed and manufactured according to customer’s request. |
